Sullair DS90-145AC Series Dry-type Oil Free Screw Compressor Parts List

Based in China, Chengdu Pudding Mechatronic Co.CPMC as one of the main China direct online distributor for Sullair air compressors, focus the sales to the international market with the most competitive prices. In this post, let’s share some of the parts list for Sullair air compressors models: DS90-145AC Series Dry-type Oil Free Screw Compressor Parts List.

You may be able to order the spared parts required by you to the nearby branch of Sullair or your dealer. If you can’t get these spare parts from them due to some reasons, you can directly contact CPMC China for your Sullair Air Compressors Genuine parts.

When you order the parts, please do indicate the machine model number and serial number, because the product of Sullair is improved continuously You can find the machine model number and serial number from the machine nameplate or delivery notice.

Sullair DS90-145AC Series Dry-type Oil Free Screw Compressor Spare Parts list

• 1 Air Filter Primary Element 88290020-337
• 2 Air Filter Secondary Element 88290020-338
• 3 Fluid Fiter 88290022-658
• 4 Check Valve 88298003-079
• 5 Fine Filter Element 02250153-301
• 6 Control Membrane 88298000-083
• 7 Line Filter 88290022- 560 2
• 8 Pressure Reducing Valve 88290022-562

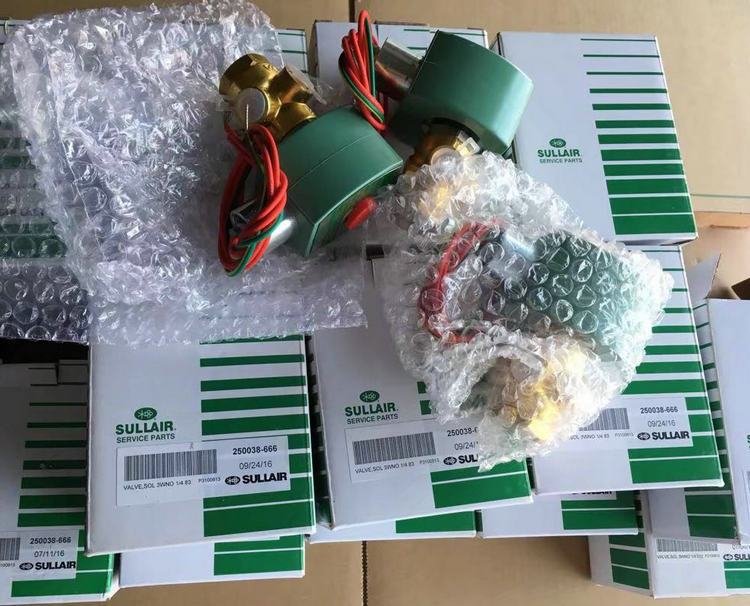

• 9 Solenoid Valve 88290023-258
• 10 Flexible Element 88298001-228
• 11 Shock Pad of Air End 88290014- 497 2
• 12 Shock Pad of Motor 88290014- 497 2
• 13 AWF (5 Gal./Barre) 250030-757 As required
• 14 AWF (55 Gal./Barrel) 250030-758 As required

Motor-Compressor System Parts List No. P/N Name

• 02250210-469 1 132L,145H
• 02250189-517 1 110H,132HH
• 02250210-468 Compressor Air End 1 90L,110HH
• 02250210-467 75L,90HH
• 88812116-045 Bolt
• 88290014-497 Shock Absorber
• 88298000-075 Coupling
• 88298000-077 Coupling
• 88298003-455 Base
• 88298003-945 Air End
• 88298003-096 Drain Connector Support
•  88298000-181 Net Hood
• 88298001-453 1 132KWNEMA
• 88298001-470 1 110KW NEMA
• 88298003-323 90KWNEMA
• 88298003-324 145KWNEMA
• 88812108-016 Full Thread Bolt
• 88812112-080 Full Thread Bolt
• 88812114-060 Full Thread Bolt
• 88812116-160 Full Thread Bolt
• 88812120-045 Full Thread Bolt
• 88812120-080 Full Thread Bolt
• 88821114-128 Nut
• 18 88821120-180 Nut
• 88831108-016 Flat Washer
• 88831120-030 Flat Washer
• 88832108-021 Spring Washer
• 88832112-031 Spring Washer
• 88832114-036 Spring Washer
• 88832116-041 Spring Washer
• 88832120-050 Spring Washer
• 88831114-025 Flat Washer
• 88831116-030 Flat Washer
• 88831112-025 Flat Washer
• 88298003-946 Motor Support
• 88813110-020 Flanged Bolt

DS90-145AC Series Dry-type Oil Free Screw Compressor Parts List Illustrations and Parts List Air Inlet System Parts List

• 02250147-697 Sealing Gasket 1
• 88290003-367 Clamp Retainer 2
• 88290004-721 T-Shape Clamp 1
• 88290004-723 T-Shape Clamp 1
• 88290019- 509 Air Filter Assembly
• 88298000-083 Control Membrane
• 88298003-166 Air Inlet Valve
• 88298003-750 Air Inlet Elbow
• 88298004-047 Support ofAir Filter
• 88812108-060 Full Thread Bolt
• 88812110-025 Full Thread Bolt
• 88812120-050 Full Thread Bolt
• 88821108-068 Nut
• 88821110-084 Nut
• 88831110-020 Flat Washer
• 88832108-021 Spring Washer
• 88832110-026 Spring Washer
• 88832120-050 Spring Washer 8

DS90-145AC Series Dry-type Oil Free Screw Compressor Parts List llustrations and Parts List Air Inlet Valve Parts List

• 88290022-199-07 Adjusting Screw
• 88290022-199-08 Nut
• 88290022-199-09 Anti-Loose Nut
• 88290022-199-10 By-pass Block
• 88298000-096-01 Sliding Block
• 88298000-096-03 Sealing Block
• 88298000-096-04 Cover Plate
• 88298000-096-05 Retainer Ring
• 88298000-096-06 Spacer Bush
• 88298000-096-11 Fixed Shaft
• 88298000-097 Valve Body
• 88298000-098 Membrane Cavity Valve Body
• 88298000-100 Butterly Valve Piece
• 88298000-101 Valve Cover
• 88298000-102 Valve Element
• 88298000-103 Spring
• 88812106-020 Full Thread Bolt
• 88812108-035 Full Thread Bolt
• 88818208-030 Socket head cap screw
• 88818208-035 Socket head cap screw
• 88832106-016 Spring Washer
• 88832108-021 Spring Washer
• 88842018-011 O-Ring
• 88842026-028 O-Ring 2

DS90-145AC Series Dry-type Oil Free Screw Compressor Parts List Illustrations and Parts List Cooling Water Loop System Parts List

• 88298003-540 Air Pipe
• 88298003-546 Centrifugal Fan 一 50HZ
• 88298003-838 Front Support I
• 88298003-842 Front Support II
• 88812116-050 Full Thread Bot
• 88831112-025 Flat Washer
• 88831116-030 Flat Washer
• 88832116-041 Spring Washer
• 88812116-065 Full Thread Bolt
• 88290022-244 Relief Valve
• 88842035-056 0 Ring
• 88290022-937 Connection Base
• 88834260-029 Combined Gasket
• 02250147-695 Sealing Gasket
• 88812116-035 Full Thread Bolt
• 88298004-815 After Cooler
•  88298004-819 Precooler Air Inlet Seal Head
• 88298004-817 Precooler
• 88298004-816 Intercooler
• 88298004-811 Fluid Cooler
• 88298004-837 Precooler Air Discharge Seal Head
• 88298004-850 Precooler Air Discharge Seal Head Il
• 88298004-968 Rear Support
• 88298004-969 Rear Support
• 88298004-990 Cooler Support
• 88298004-991 Cooler Support
• 88298004-995 Air Pipe
• 88298005-059 Drain Valve
• 88298002-518 Automatic Moisture Separator
• 88298003-327 Moisture Separator Support
• 88298005-184 Moisture Separator Clamp
• 88298005-254 Scaling Gasket
