LS25S/V250S Sullair Compressor 200-350Hp/149-261KW Air & Water-Cooled 24KT Parts List

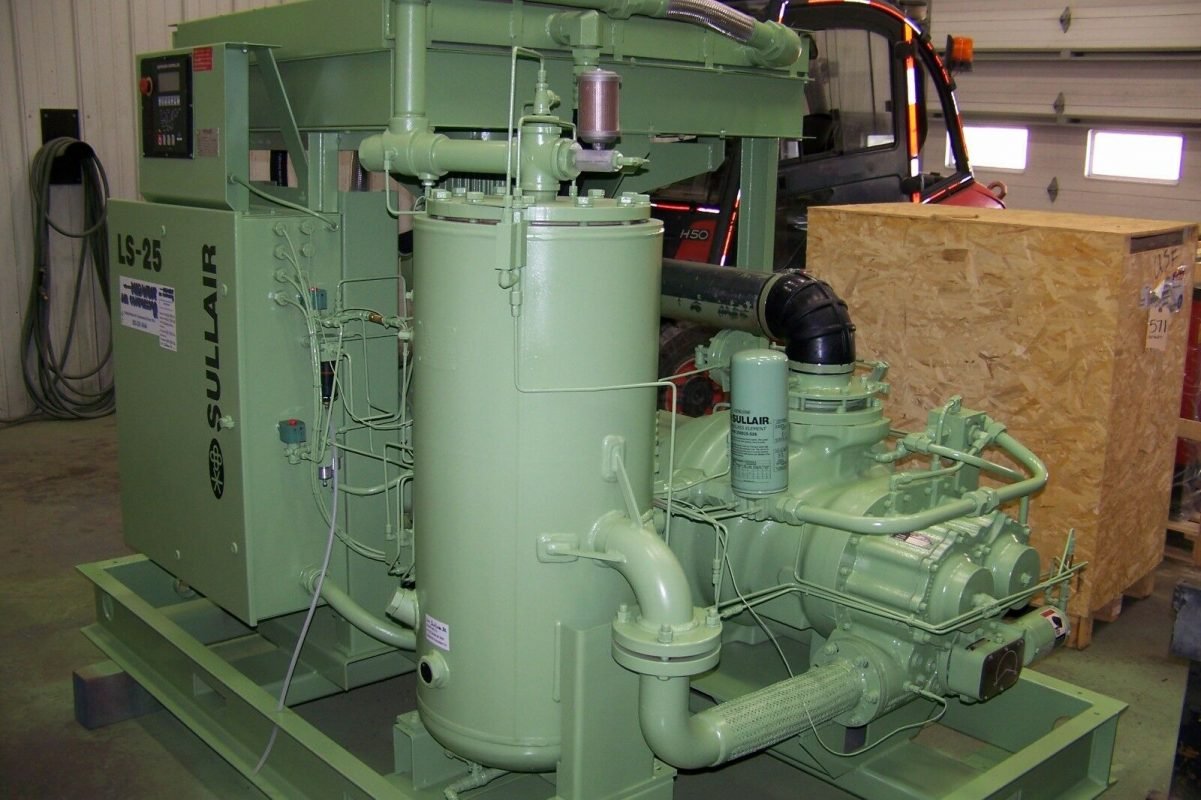

Sullair LS25 150 HP Air Compressors China Supplier

Hi! This is Dhurjoy Islam Hemal. I am from Bangladesh, live in China. As a Machinery Expert, I will discuss with you LS25S/V250S Rotary Screw Air Compressor 200-350HP Air-Cooled Whole Spear Parts.  In this post, Chengdu Pudding Mechatronic Co.CPMC Represents you Sullair Air Compressors LS25S/V250S Rotary Screw Air Compressor 200-350HP Air-Cooled Whole catalog. We specialize in serving genuine parts, air filters, oil filters, air and oil separators, maintenance kits, temperature sensors, pressure sensors, couplings, all kinds of valves, controller panels, etc. It doesn’t matter if your compressor is Sullair, Atlas Copco, Ingersoll Rand, CompAir, etc.  We’ll find the right match for your budget. Whether you are an individual user, retailer, or wholesaler in your region, our wholesale price is available to you.

LS25S/V250S 200-350Hp/149-261KW Air-Cooled & Water-Cooler 24KT Sullair Rotary Screw Air Compressor All Parts List

LS25S/V250S 200-350HP Air-Cooled 24KT Sullair Rotary Screw Air Compressor

200/250HP 300/350HP DESCRIPTION
02250195-704 02250195-704 FILTER, ASSY AIR INLET (HEAVY DUTY)
02250137-084   VLV, INLET POPPET 8”
02250117-009 02250117-009 GUAGE, PRESSURE
42694 42694 VLV, CHECK 1/2”
20050132-934 20050132-934 ORIFICE, CAP 1/4” NPT .031 DIA
02250125-657 02250125-657 VLV, SOL 3WNO 1/4” 115VAC
02250153-023 02250153-023 FLTR, SCF-20N 1/4” NPT
02250125-774 02250125-774 ORIFICE, .032”
02250101-191 02250101-191 ORIFICE, .03”
409783 409783 VLV, BLOWDOWN NC 2-WAY
02250110-557 02250110-557 VLV, CHECK 1/4”
02250046-568 02250046-568 REGULATOR, REDUCING 1/4 NPT
02250125-776 02250125-776 ORIFICE, .094
02250126-129 02250126-129 GLASS, SIGHT 1/4”
02250117-782 02250117-782 STRAINER, IN LINE SAE
250033-821 250033-821 VLV, MIN. PRESS. CHECK 3” NPT
02250182-545 02250182-545 DRN, ZERO LOSS 115V 1/2” NPT
250034-133 250034-129 ELEMENT, SECONDARY SEPARATOR
250034-121 250034-123 ELEMENT, PRIMARY SEPARATOR
02250170-782 02250170-782 VLV, DR COMBO 115 VAC
02250179-431 02250179-431 P, THERMISTER 3000 OHM NTC 20’L
22033 22033 ORIFICE, .094 BRASS 1/4MNPT
02250119-109 02250119-109 VLV, RELIEF 1-1/2” 150#
02250120-350 02250120-612 TANK, FLUID SEP.
02250097-611 02250097-611 GLASS, FLUID LEVEL SIGHT
02250125-221 02250125-221 VLV, BALL 3/4”
02250137-477 02250137-477 ORIFICE, .070 BRASS 1/4MNPT
02250184-677 02250184-677 HTR, JZL DRAIN 115V 50W
02250127-119 02250120-955 VLV, THERMAL ASSY W/SAE PORTS
02250121-658 02250121-638 FILTER, FLUID
02250125-667 02250125-667 VLV, SOL 2WAY NO 1/4”
02250122-858 02250122-218 COOLER, FLUID W/1-7/8”-12 SAE OIL PORTS
02250121-098 02250122-219 AFTERCOOLER, AIR TO AIR
02250166-744 02250166-744 SEP, WTR SCWS-1700N 3” L/AD
47226 47226 HEATER, SUMP
02250182-548 02250182-548 VLV, BALL/STNR COMBO-1/ 2”NPT
02250078-249 02250078-249 SWITCH, VAC. 22” WC N4
47117 47117 VALVE, BALL 1/2 NPT
42034 42034 TRAP, AUTOMATIC 3/4” 150#
02250044-985 02250044-985 P, RTD
02250186-328 02250186-328 VLV, PRESSURE  REG 65PSI

V250S 200-350HP Air-Cooled 24KT Sullair Rotary Screw Air Compressor

200/250HP 300/350HP DESCRIPTION
02250195-704 02250195-704 FILTER, ASSY AIR INLET (HEAVY DUTY)
02250137-084 VLV, INLET POPPET 8”
02250117-009 02250117-009 GUAGE, PRESSURE
42694 42694 VLV, CHECK 1/2”
20050132-934 20050132-934 ORIFICE, CAP 1/4” NPT .031 DIA
02250125-657 02250125-657 VLV, SOL 3WNO 1/4” 115VAC
02250153-023 02250153-023 FLTR, SCF-20N 1/4” NPT
02250125-774 02250125-774 ORIFICE, .032”
02250101-191 02250101-191 ORIFICE, .03”
409783 409783 VLV, BLOWDOWN NC 2-WAY
02250110-557 02250110-557 VLV, CHECK 1/4”
02250046-568 02250046-568 REGULATOR, REDUCING 1/4 NPT
02250125-776 02250125-776 ORIFICE, .094
02250126-129 02250126-129 GLASS, SIGHT 1/4”
02250117-782 02250117-782 STRAINER, IN LINE SAE
250033-821 250033-821 VLV, MIN. PRESS. CHECK 3” NPT
02250182-545 02250182-545 DRN, ZERO LOSS 115V 1/2” NPT
250034-133 250034-129 ELEMENT, SECONDARY SEPARATOR
250034-121 250034-123 ELEMENT, PRIMARY SEPARATOR
02250170-782 02250170-782 VLV, DR COMBO 115 VAC
02250179-431 02250179-431 P, THERMISTER 3000 OHM NTC 20’L
22033 22033 ORIFICE, .094 BRASS 1/4MNPT
02250119-109 02250119-109 VLV, RELIEF 1-1/2” 150#
02250120-350 02250120-612 TANK, FLUID SEP.
02250097-611 02250097-611 GLASS, FLUID LEVEL SIGHT
02250125-221 02250125-221 VLV, BALL 3/4”
02250137-477 02250137-477 ORIFICE, .070 BRASS 1/4MNPT
02250184-677 02250184-677 HTR, JZL DRAIN 115V 50W
02250127-119 02250120-955 VLV, THERMAL ASSY W/SAE PORTS
02250121-658 02250121-638 FILTER, FLUID
02250125-667 02250125-667 VLV, SOL 2WAY NO 1/4”
02250122-858 02250122-218 COOLER, FLUID W/1-7/8”-12 SAE OIL PORTS
02250121-098 02250122-219 AFTERCOOLER, AIR TO AIR
02250166-744 02250166-744 SEP, WTR SCWS-1700N 3” L/AD
47226 47226 HEATER, SUMP
02250182-548 02250182-548 VLV, BALL/STNR COMBO-1/ 2”NPT
02250078-249 02250078-249 SWITCH, VAC. 22” WC N4
47117 47117 VALVE, BALL 1/2 NPT
42034 42034 TRAP, AUTOMATIC 3/4” 150#
02250044-985 02250044-985 P, RTD
02250186-328 02250186-328 VLV, PRESSURE  REG 65PSI

LS25S/V250S 200-350HP Water-Cooled 24KT Sullair Rotary Screw Air Compressor

200/250HP 300/350HP DESCRIPTION
250006-718 250006-718 FLTR,INL OPTIMALAIR 18OD X10IN
02250137-084 02250137-084 VLV, 8″ INL  POPPET
02250117-009 02250117-009 GA,PRESS LIQ FILL PSI/BAR 2.5″
42694 42694 VALVE, CHECK 1/2
02250052-358 02250052-358 REG,BACK PRESS CONTROL 1/4″
02250125-657 02250125-657 VLV,SOL 3WN0 1/4 235# N4
02250168-917 02250168-917 FLTR,SCF-20N 1/4″ KANBAN PKG
02250148-608 02250148-608 VLV,PRESS REG 1/4″ NPT 70-250
02250125-774 02250125-774 ORF,PLUG BRASS 1/8″NPT X1/32
02250101-191 02250101-191 ORF,.031 BRASS 1/4MNPT
409783 409783 VALVE, BLWDWN 1″NC 2WAY #C6654
02250110-557 02250110-557 VLV,CHK 1/4″NPTF VITON SEAT
02250046-568 02250046-568 REG,REDUCING 1/4NPT
02250155-174 02250155-174 XDCR,PRESS 0-250# RATIOMETRIC
02250125-776 02250125-776 ORF,PLUG BRASS 1/8″NPT X 3/32
02250126-129 02250126-129 GL,SIGHT/ORF BLK-SAE
02250117-782 02250117-782 FLTR,ASSEMBLY GENISIS FILTR
250033-821 250033-821 VALVE, MIN PRESS CHECK 3″
02250182-545 02250182-545 DRN,ZERO LOSS 115V 1/2″NPT
250034-133 250034-123 ELEMENT, SEP/SEC
250034-121 250034-129 ELEMENT, SEP/PRI
02250182-548 02250182-548 VLV,BALL/STNR COMBO-1/2″NPT
02250179-431 02250179-431 P,THERMISTOR 3000 OHM NTC 20’L
22033 22033 ORF,.094 BRASS 1/4 MNPT
02250119-109 02250119-109 VLV,RLF 1-1/2″ 150# 1950CFM *
02250120-350 02250120-612 TNK,OIL SUMP
02250097-611 02250097-611 PLUG,SIGHT GLASS 1 7/8″ SAE
02250125-221 02250125-221 VLV,BALL 3/4″SAE X 3/4″NPT
02250137-477 02250137-477 ORF,.070 BRASS 1/4 MNPT
02250184-677 02250184-677 ORF,.070 BRASS 1/4 MNPT
02250127-119 02250120-955 VLV,THRM ASSY
02250121-658 02250121-638 FLTR, FLUID
02250126-003 02250126-003 CLR,OIL 8 X 60 W/SAE PORTS
42950 42950 AFTERCOOLER, WC
02250053-383 02250053-383 CLR, WC 08060-S-1
02250166-744 02250166-744 SEP,WTR SCWS-1700N 3” L/AD
47226 47226 HEATER, DRUM-115V 1000W
02250170-782 02250170-782 VLV,DR COMBO 115 VAC
02250078-249 02250078-249 SW,VAC 22″WC N4 6FT CABLE 5A
02250132-934 02250132-934 ORF,CAP 031 X 1/4″NPT
02250125-667 02250125-667 VLV,SOL 2WNO 1/4 130# N4
250017-992 250017-992 SWITCH, PRESS NO 10 PSI
248743 248743 VALVE, WATER REG 1 1/4″-POWERS
02250125-653 02250125-653 VLV,SOL 2WNC 1-1/2 150# N4
47117 47117 VALVE, BALL 1/2 NPT
42034 42034 TRAP, AUTOMATIC 3/4″ 150#

LS25S/V250S 300-350HP Remote-Cooled 24KT Sullair Rotary Screw Air Compressor

PART NO. DESCRIPTION
250006-718 FLTR,INL OPTIMALAIR 18OD X10IN
02250137-084 VLV, 8″ INL  POPPET
02250117-009 GA,PRESS LIQ FILL PSI/BAR 2.5″
042694 VALVE, CHECK 1/2
02250052-358 REG,BACK PRESS CONTROL 1/4″
02250125-657 VLV,SOL 3WN0 1/4 235# N4
02250168-917 FLTR,SCF-20N 1/4″ KANBAN PKG
02250148-608 VLV,PRESS REG 1/4″ NPT 70-250
02250125-774 ORF,PLUG BRASS 1/8″NPT X1/32
02250101-191 ORF,.031 BRASS 1/4MNPT
409783 VALVE, BLWDWN 1″NC 2WAY #C6654
02250110-557 VLV,CHK 1/4″NPTF VITON SEAT
02250046-568 REG,REDUCING 1/4NPT
02250155-174 XDCR,PRESS 0-250# RATIOMETRIC
02250125-776 ORF,PLUG BRASS 1/8″NPT X 3/32
02250126-129 GL,SIGHT/ORF BLK-SAE
02250117-782 FLTR,ASSEMBLY GENISIS FILTR
250033-821 VALVE, MIN PRESS CHECK 3″
02250182-545 DRN,ZERO LOSS 115V 1/2″NPT
250034-129 ELEMENT, SEP/SEC
250034-123 ELEMENT, SEP/PRI
02250182-548 VLV,BALL/STNR COMBO-1/2″NPT
02250179-431 P,THERMISTOR 3000 OHM NTC 20’L
042034 TRAP, AUTOMATIC 3/4″ 150#
02250119-109 VLV,RLF 1-1/2″ 150# 1950CFM *
02250120-612 TNK,OIL SUMP 30″ VERT 160#
02250097-611 PLUG,SIGHT GLASS 1 7/8″ SAE
02250125-221 VLV,BALL 3/4″SAE X 3/4″NPT
02250137-477 ORF,.070 BRASS 1/4 MNPT
02250184-677 ORF,.070 BRASS 1/4 MNPT
02250120-955 VLV,THRM 180 DEG 2.5IN SAE
02250121-638 FLTR,2.5-12 SAE CORELESS 80CN2
02250132-934 ORF,CAP 031 X 1/4″NPT
02250122-218 CLR,OIL 300-350HP SIDE X SIDE
02250122-219 CLR,AIR AFT 300-350 HP
02250166-744 SEP,WTR SCWS-1700N 3” L/AD
047226 HEATER, DRUM-115V 1000W
047117 VALVE, BALL 1/2 NPT
02250078-249 SW,VAC 22″WC N4 6FT CABLE 5A
02250170-782 VLV,DR COMBO 115 VAC
02250125-667 VLV,SOL 2WNO 1/4 130# N4
043239 SW,TEMP N.O. 115F 1/2″NPT
02250122-004 VLV, OIL STOP 2-1/2″ SAE
02250110-557 VLV,CHK 1/4″NPTF VITON SEAT
02250125-617 VLV,CHECK 2 1/2″ SAE INSERT
02250125-632 STNR,Y-LINE OIL 2″NPT 100MESH
250018-782 PUMP, OIL SYS 80GPM @ 1800RPM
various MTR, 5HP
043877 VALVE, CONTROL 3 WAY
02250137-619 ORF,.031 BRASS 1/4MNPT W/O SPIRAL VLV
02250101-191 ORF,.031 BRASS 1/4MNPT W/SPIRAL VLV
022033 ORIFICE,.094 BRASS 1/4MNPT
