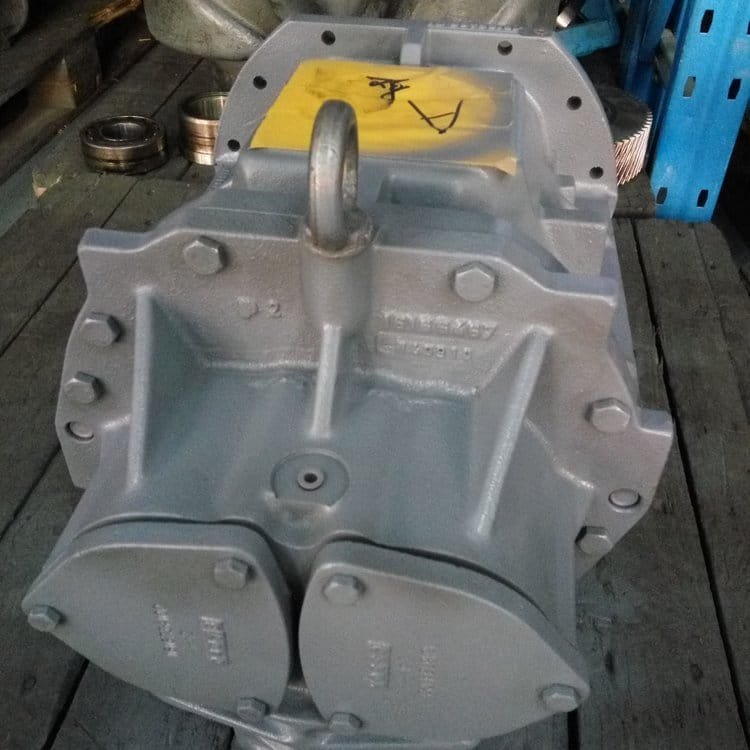

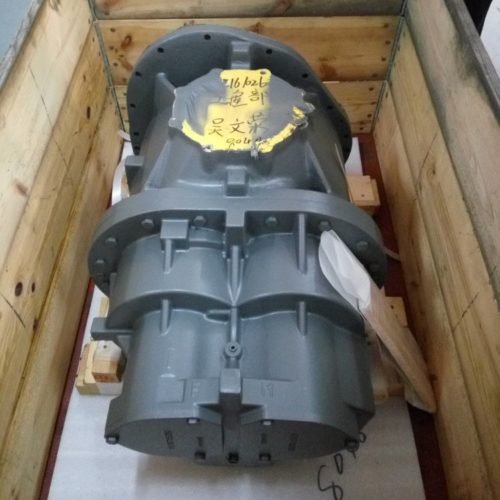

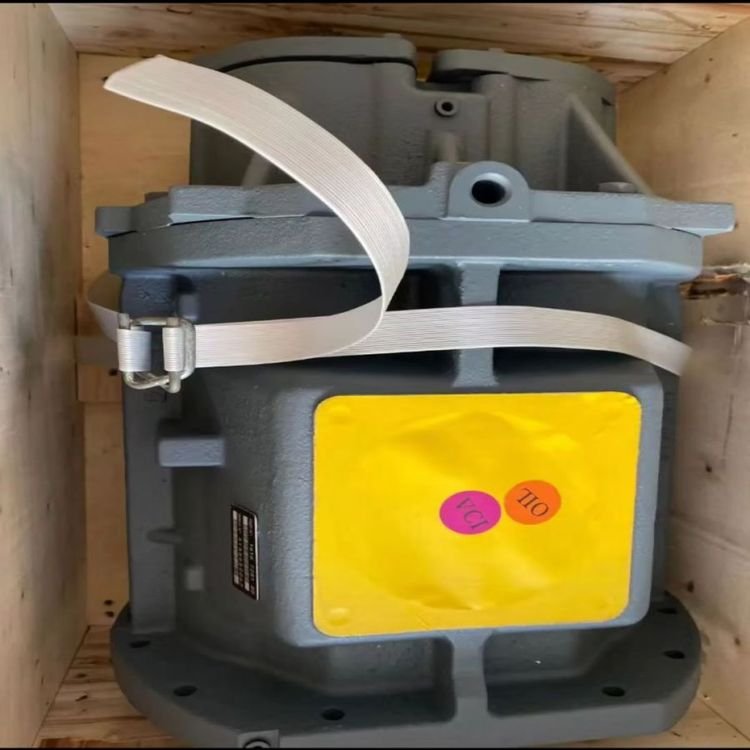

1616 7540 80 – C242 Air End for Atlas Compressor Model GA355-500
Original price was: $48,888.0.$38,000.0Current price is: $38,000.0.
Get 1616754080 C242 Air End Genuine Part for Atlas Copco Compressor which applies for Atlas Compressor Model GA355-500. If you are looking for this air end, you are lucky to expect great discount from Chengdu Pudding Mechatronic Co.CPMC. Please reconfirm your needed air ends with the part numbers and compressors name plate, so we can prepare the brand new air end and wish you can receive it soon.
Learn more of the Atlas Copco Screw Air Compressors Air End Parts Numbers below for your reference:
1616 5789 82, 1616 6466 80,1616 6575 80, 1616 7103 80, 1616 7146 83, 1616 7281 80, 1616 7345 80, 1616 7408 81, 1616 7408 91, 1616 7409 80, 1616 7409 81, 1616 7409 90,1616 7535 80, 1616 7540 80, 1625 1641 00, 1625 1641 01, 1625 1641 02, 1625 1641 55, 1625 1641 56, 1625 1641 57
No hesitate to contact us here, we are more than happy to quote back to you with great offer in 0.5-23.5 hours!
Enquiry for: 1616 7540 80 – C242 Air End for Atlas Compressor Model GA355-500
Overview
1. Using standard Atlas Copco profile (SAP), the rotor adopts 4/6 tooth combination, and the rotor diameter is equal. Compared with 5/6 tooth (Sigma) or 4/5 tooth (Cyclon) combination, the female rotor has higher rigidity , So it is not easy to deform, and the internal leakage loss is small.
2. SAP profile: due to compression force, it contacts the rear edge of the tooth side. The gap of the rotor seal line is small. The outlet hole at the exhaust end is small (small leak triangle). Small internal leakage and loss. Higher internal pressure ratio (10bar). Improved efficiency, especially in 10 and 13 bar models, which have larger rotor diameters and low tip-speeds.
3. Effective, reliable and long-life oil seals and gas seals after more than 40 years of continuous improvement and the test of time. It is composed of oil seal C with reverse thread and two stainless steel gas seal B. These oil seals and air seals maintain a small gap with the shaft but do not contact, and their sealing efficiency, reliability and life are far better than the general labyrinth seals or mechanical seals. A.C. There is a small leakage hole E between the oil seal and the gas seal, in case the seal is damaged, it can still provide compressed air.
4. Gearbox: It can reduce more energy consumption and costs. The axial force generated by the gear offsets the axial force acting on the male rotor. Direct drive does not have this advantage.
5.Keep the temperature lower.
Atlas Copco Compressor 1616754080 C242 Air End Features:
1. Adopt 4/6 rotor tooth profile.
2. The gear box is specially designed to reduce the axial force. Using original imported SKF bearings to ensure service life.
Product advantages: original imported bearings to ensure the operating life of the host
Product parameters: profile line, using 4/6 teeth
Process flow:
Rotor milling
Disc cutter
CBN grinding wheel
CNC five-axis linkage rotor grinder
1616754080 C242 Air End Genuine Part Maintenance Precautions:
1. Replace the special lubricating oil on time;
2. Regular main engine overhaul and maintenance to improve main engine efficiency;
3. Check whether the bearing coupling and other parts are in good condition before starting the new machine;
4. Pay attention to check the steering when starting up or changing cables.
Part Numbers List for Atlas Copco Genuine Air end for Screw Air Compressor
1616 5789 82
1616 6466 80
1616 6575 80
1616 7103 80
1616 7146 83
1616 7281 70
1616 7281 80
1616 7281 90
1616 7345 80
1616 7408 81
1616 7408 91
1616 7409 81
1616 7409 90
1616 7535 80
1616 7540 80
1625 1641 00
1625 1641 01
1625 1641 02
1625 1641 55
1625 1641 56
1625 1641 57
