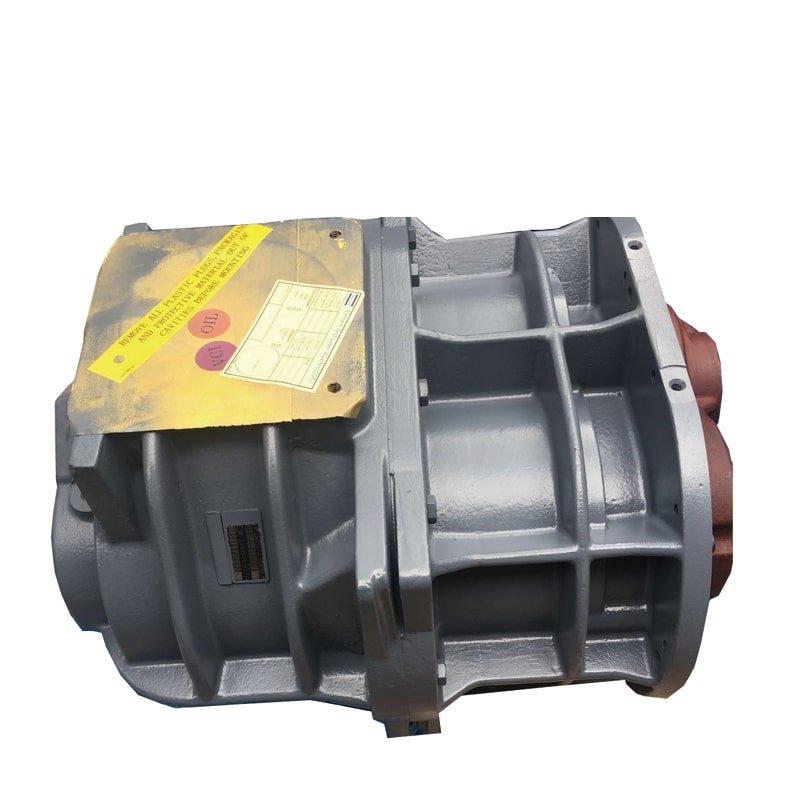

Second Hand Atlas Copco Air End C146 for Portable Air Compressor

Original price was: $6,500.0.Current price is: $2,600.0.

1616714681 1616714692 1616714682 Portable Atlas Copco Air Compressor Air End C146: The screw rotor developed by Atlas Copco has high performance, long working life, high reliability and low maintenance cost. Powered by Caterpillar/Cummins China III emission engine, its electronic control technology can effectively reduce fuel consumption and emissions. At the same time, the pressure and air volume ratio of this series is reasonable, which can effectively improve work efficiency. The design of the whole machine conforms to ergonomics, the operation is very convenient, and it can meet the test of various harsh working conditions.

Product parameters:
Model XAXS600C
Exhaust volume 16.6m3/min
Rated working pressure 17bar
Number of compression stages 1
Air compressor oil volume 60L
Gas tank volume 63.5L
Diesel tank volume 320L
Noise level 75±3dB(A)
Overall dimensions (length*width*height) 4893*2010*2313
Machine weight 2800kg
Number of cylinders 6
Engine manufacturer Cummins
Engine speed 2000rpm
Engine speed 1300rpm
Lubricating oil system capacity 16.7L
Coolant system capacity 34L

Learn more of the Atlas Copco Screw Air Compressors Air End Parts Numbers below for your reference:

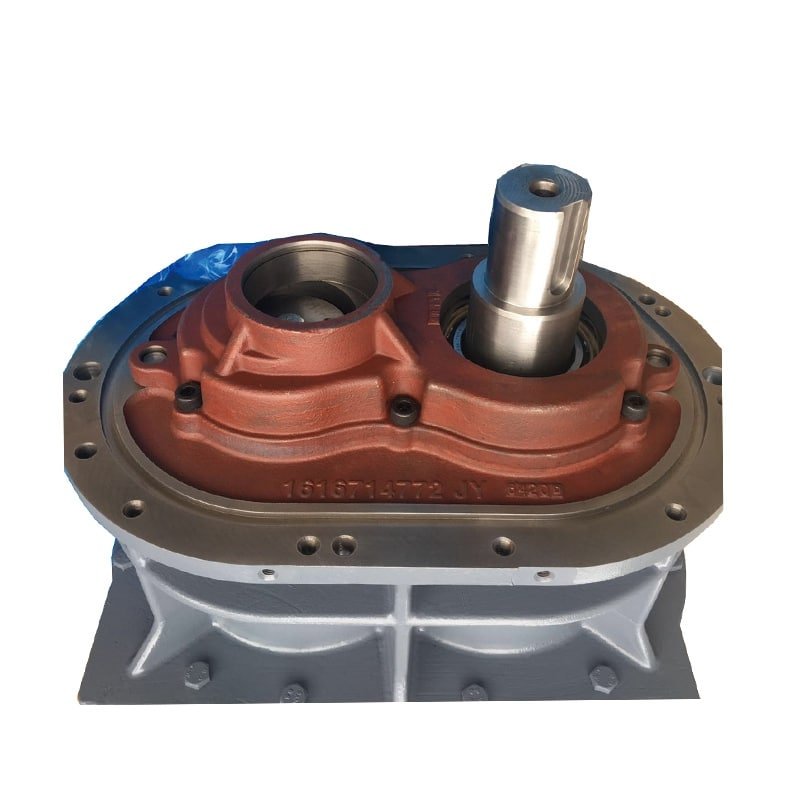

1616 5789 82, 1616 6466 80,1616 6575 80, 1616 7103 80, 1616 7146 82, 1616 7146 83, 1616 7146 92, 1616 7281 80, 1616 7345 80, 1616 7408 81, 1616 7408 91, 1616 7409 80, 1616 7409 81, 1616 7409 90,1616 7535 80, 1616 7540 80, 1625 1641 00, 1625 1641 01, 1625 1641 02, 1625 1641 55, 1625 1641 56, 1625 1641 57

No hesitate to contact us here, we are more than happy to quote back to you with great offer in 0.5-23.5 hours!

Get a Quote
SKU: Second Hand Atlas Copco Air End C146 : 1616714681-1616714692-1616714682 Categories: , , Tag:

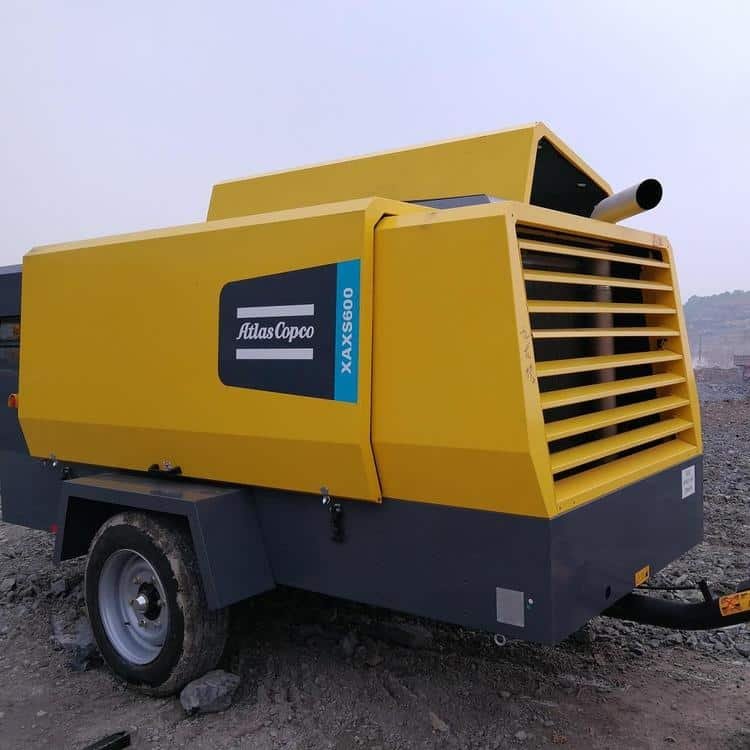

XAXS600 Air end C146 Disel Driven
Second Hand Atlas Copco Air End C146 for Portable Air Compressor
